Sealed Case Subsea Pressure Gauges

The Ashford Instrumentation range of sealed case subsea pressure gauges feature an extremely robust  sealed case which is machined from a solid stainless steel block and is capable of withstanding the external pressure of the seawater outside the case. Atmospheric pressure of 1 bar is trapped within the case and is used as the reference pressure against which the process pressure is measured. This style of gauge should be used when the pressure of the process media needs to be measured against atmospheric pressure at sea level.

 PRODUCT IMAGE PRODUCT DESCRIPTION

50mm Bail Out Gauge Mixed Gas Diving - Submersible 400m 50mm Bail Out Gauge Mixed Gas Diving - Submersible 400m

50mm diameter bourdon tube subsea pressure gauge suitable for depths to 400m. Designed to measure the air/gas contents of diver breathing tanks and suitable for mixed gas diving. This 0-450 bar gauge is manufactured from 316 stainless steel and featu... VIEW MORE

Subsea Bottom Entry Pressure Gauge  - 63mm Diameter 450m Gauge Subsea Bottom Entry Pressure Gauge - 63mm Diameter 450m Gauge

63mm diameter bottom entry bourdon tube subsea pressure gauge suitable for depths to 450m. The compact and robust design of this gauge means it is ideal for for use on diving bells and caissons since it can be used inside or outside the bell. Manufac... VIEW MORE

Subsea Pressure Gauge Back Entry  - 63mm Diameter 450m Gauge Subsea Pressure Gauge Back Entry - 63mm Diameter 450m Gauge

63mm diameter bourdon tube centre back subsea pressure gauge suitable for depths to 450m. Supplied as standard with a screwed panel mounting ring, the gauge can be universally mounted as direct mount back entry or panel mount front flange. The c... VIEW MORE

Subsea Pressure Gauge - 63mm Premium Subsea  1200m Gauge Subsea Pressure Gauge - 63mm Premium Subsea 1200m Gauge

63mm diameter premuim subsea bourdon tube pressure gauge suitable for submerged depths to 1200m. The case of this gauge is machined from a solid stainless steel block and is capable of withstanding an external pressure of 120 bar. The bourdon tube de... VIEW MORE

Subsea Pressure Gauge - 63mm Premium Subsea  2000m Gauge Subsea Pressure Gauge - 63mm Premium Subsea 2000m Gauge

63mm diameter premuim subsea bourdon tube pressure gauge suitable for submerged depths to 2000m. The case of this gauge is machined from a solid stainless steel block and is capable of withstanding an external pressure of 200 bar. The bourdon tube de... VIEW MORE

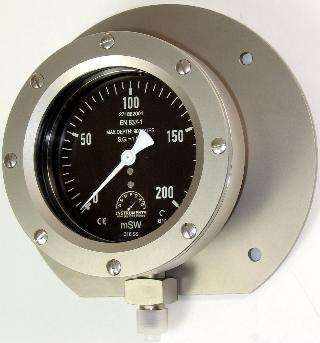

Subsea  Depth Gauge - 100mm Diameter to 900m Depth Subsea Depth Gauge - 100mm Diameter to 900m Depth

100mm diameter premium  subsea pressure gauge suitable for maximum submerged depths of  900m. The gauges features a sealed 316 stainless steel case that acts as an internal reference chamber. The process port is left open to the s... VIEW MORE

Subsea Pressure Gauge - 100mm Premium Subsea 4000m Subsea Pressure Gauge - 100mm Premium Subsea 4000m "Ultra Deep" Gauge

Nominal 100mm diameter premuim subsea bourdon tube pressure gauge suitable for submerged depths.The case of this gauge is machined from a solid stainless steel block and is capable of withstanding an external pressure of 400 bar. The bourdon tube des... VIEW MORE

Subsea Pressure Gauge - 100mm Premium Subsea 6000m  Subsea Pressure Gauge - 100mm Premium Subsea 6000m "Supasub" Gauge

The Ashford Instrumentation "Supasub" gauge with nominal 100mm diameter (140mm across bezel)  premium subsea bourdon tube pressure gauge suitable for submerged depths to 6000m as standard. The case of this gauge is machined from a solid stainles... VIEW MORE

Subsea Pressure Gauge - 160mm Premium Subsea 450m Gauge Subsea Pressure Gauge - 160mm Premium Subsea 450m Gauge

160mm diameter premuim subsea bourdon tube pressure gauge suitable for submerged depths to 450m. The case of this gauge is machined from a solid stainless steel block and is capable of withstanding an external pressure of 45 bar. The bourdon tube des... VIEW MORE

Subsea Test Gauge Subsea Test Gauge "0.25% Accuracy" - 160mm Diameter

Suitable to a maximum depth of 450m subsea, this 160mm diameter subsea test gauge with accuracy 0.25% full scale can be used on a variety of gas or fluid measurement applications. By leaving the process connection port open to the seawater, this gaug... VIEW MORE
